Riffraff Diesel 96-03 7.3L HPOP Large Capacity Billet Reservoir Spacer v2.0
Need more oil to run your large single or dual high pressure oil pumps? We have developed the largest reservoir spacer on the market and it will allow you to have an additional 135cc of oil in the reservoir no matter what HPOP you are feeding. By allowing additional reserve you won't have to deal with rough starts, running out of oil on WOT or P1211 code. Originally we only made these on request for dual pump customers and project builds, but with the demand growing we decided it was time to produce it for retail.
We have also made sure that the JIC and ORB ports are functional and allow easy connection with many popular pump setups on the market while not interfering with existing OEM sensors and lines. All ports allow full flow both on feed and return so that there is zero restriction, which is very important as the IPR dump lines when restricted can effect IPR operation. This allows you to simply install and run our spacer instead of running to the hardware store to find fitting to make it work.
Included:
- Billet HPOP Reservoir Spacer v2.0
- Upper and Lower Motorcraft Orings
- Custom Coated Longer Mounting Bolts
- Misc Plugs and Fittings for varied applications
- 100% MADE IN THE USA
*Note: Anodized Color on Aluminum can be discolored / damaged by chemical engine cleaners. Use only soap and water to clean.
1996-2003 7.3L Powerstroke

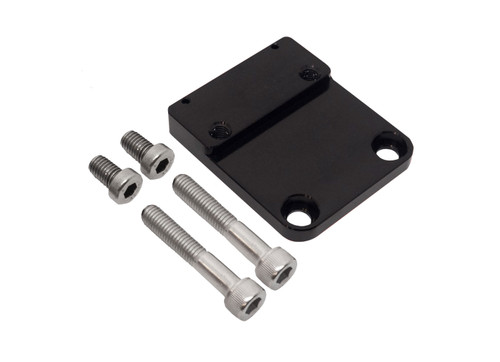

1999-2003 Stock fuel bowl you will want to purchase our Billet Spacer bracket to relocate your bowl to connect to stock fuel lines. We suggest considering the FFL kit as a replacement.
Note: Make sure 1996-Early 1999 screen gasket goes on spacer not front cover.
